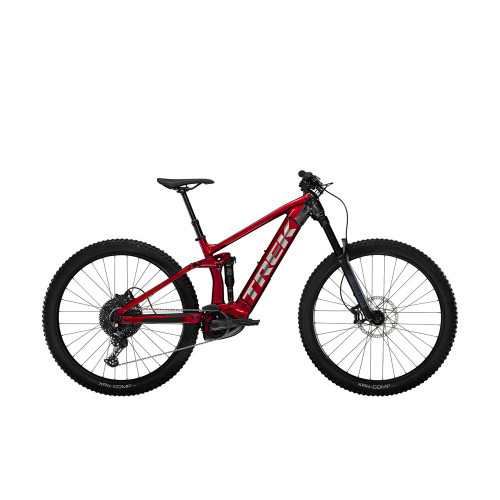

Trek Rail 5 625Wh Gen 3 M

Trek Rail 5 625Wh Gen 3 - The Rail 5 625 is an electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, plus a powerful Bosch drive system that's basically like having your own shuttle.

Description:

The Alloy Rail Gen 3 features Bosch’s smart system with an LED remote that connects to the Bosch eBike Flow app for over-the-air system updates, customised motor tuning and more. Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage. The controller has Walk Assist and an intelligent e-MTB mode that automatically delivers the right amount of power based on your terrain. Made with the same hard-charging frame tech as our amazing trail bikes, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP). The bigger battery means you can adventure for longer between charges.

It's right for you if...

You’re looking for an e-MTB that’s just as ready to shred as non-electric trail bikes. You want a powerful Bosch drive system that’ll propel you up climbs so you can hit lap after lap.

The tech you get:

A burly alloy frame with 150 mm of rear travel and a 625 Wh Removable Integrated Battery, an e-MTB optimised 160 mm RockShox 35 Gold RL fork, the latest from Bosch with smart system Performance Line CX capable of speeds up to 20 mph (25 km/h in Europe), including a Bluetooth® LED remote for easy connectivity and activity tracking through the eBike Flow app. Plus, a 1x12 drive train with a wide gear range so you can always find the ideal cadence for the motor, a dropper post, powerful 4-piston brakes for more downhill confidence and 29er wheels with nimble yet grippy 2.6" tyres.

The final word:

The Rail 5 625 is our best-value long-travel e-MTB. It's equally as capable as our regular long-travel trail bikes, it just gets you back to the top in a flash. Plus, the bigger battery means more time on the trail.

Specifications:

Frameset:

• Frame: Size: S
  Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
  Size: M, L, XL
  Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
• Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
• Shock: RockShox Deluxe Select+ RT, 230 mm x 57.5 mm
• Max compatible fork travel: 170 mm (580 mm axle-to-crown)

Wheels:

• Hub front: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
• Hub rear: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
• Skewer rear: Bontrager Switch thru-axle, removable lever
• Rim: Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
• Tyre: Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
• Max tyre size: Frame: 29x2.60"

Drivetrain:

• Shifter: Shimano Deore M6100, 12-speed
• Rear derailleur: Shimano Deore M6100, long cage
• Crank: E*thirteen E*spec Plus, 165 mm length
• Chainring: E*thirteen E*spec, 34T alloy, 55 mm chainline
• Cassette: SunRace CSMZ800 11-51, 12 speed
• Chain: Shimano Deore M6100
• Pedal: Wellgo VPE-536
• Max. chainring size: 34T

Components:

• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: Size: S
  TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
  Size: M, L, XL
  TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
• Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
• Brake: Size: S, M, L, XL
  Tektro HD-M745 hydraulic disc
  Size: S, M, L, XL
  Tektro HD-M745 4-piston hydraulic disc
• Brake rotor: Tektro, 6-bolt, 203 mm
• Rotor size: Max brake rotor sizes: rear 200mm

Accessories:

• Battery: Bosch PowerTube 625Wh, smart system
• Charger: Bosch standard 2A, 230V, smart system
• Motor: Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
• Computer: Bosch LED remote, smart system

Weight:

• Weight: M – 24.88 kg/54.86 lb
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
