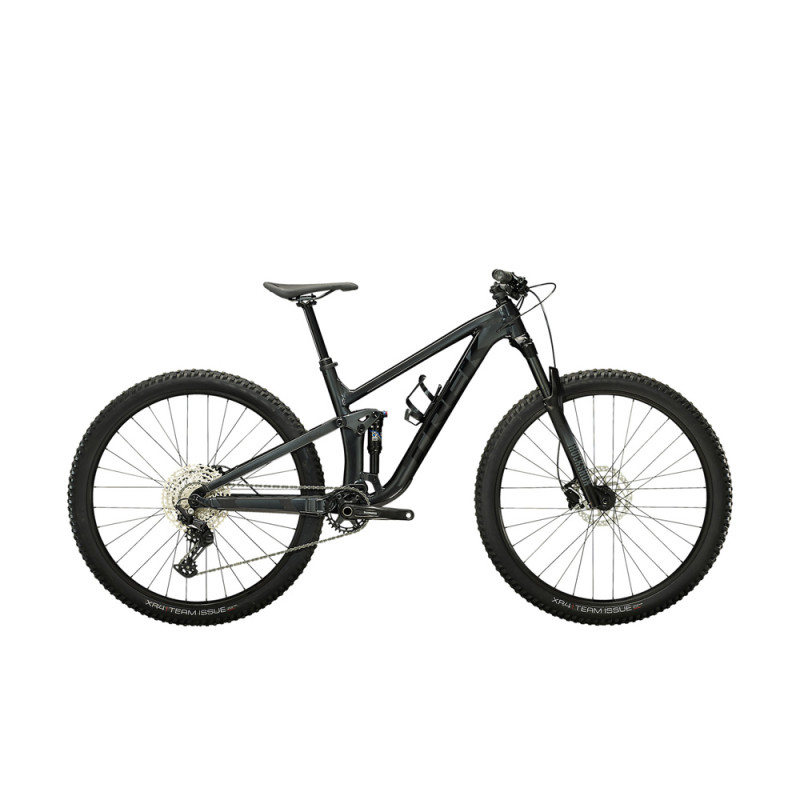

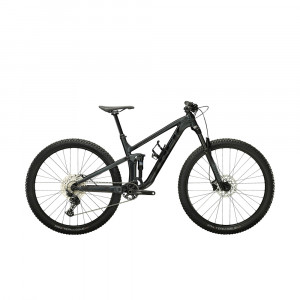

Trek Top Fuel 5 - The Top Fuel 5 is a full-suspension mountain bike that’s equal parts efficient and capable. It soaks up rough, rugged descents but still flies like a rocket up hills and on flat stretches. The light and sturdy alloy frame is built with parts picked for performance and value, making this bike perfect for your first full-suspension trail bike.
Description:This bike’s killer suspension set-up is both efficient and ready to party. Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride. A sleek internal storage compartment gives you a versatile spot to stow tools and gear. New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius.
It's right for you if...You’ve fallen in love with mountain biking, and are ready for the confidence, traction and capability of a full-suspension bike. You’re looking for a rugged frame and solid parts spec that pack performance without breaking the bank.
The tech you get:A lightweight aluminium frame with internal storage, 120 mm RockShox Recon fork, 120 mm of rear travel with an X-Fusion Pro 2 shock and a wide-range 1x12 Shimano Deore drivetrain. Plus, tubeless-ready rims, hydraulic disc brakes and a dropper post.
The final word:A solid full suspension bike at a wallet-friendly price. The best-value bike in the Top Fuel line-up is made for having a blast going fast on just about any trail.
Specifications:Frameset:- Frame: Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
- Fork: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
- Shock: X-Fusion Pro 2, 2-position damper, 185 mm x 50 mm
- Max compatible fork travel: 130 mm (541 mm axle-to-crown)
Wheels:- Hub front: Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle
- Hub rear: Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle
- Skewer rear: Bontrager Switch thru-axle, removable lever
- Rim: Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
- Tyre: Size: S, M, M/L, L, XL, XXL
Bontrager XT3 Expert, wire bead, 60 tpi, 29x2.40"
Size: S, M, M/L, L, XL, XXL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.40" - Tyre part: Size: S, M, M/L, L, XL, XXL
Bontrager TLR sealant, 180 ml/6 oz
Size: S, M, M/L, L, XL, XXL
Bontrager TLR valve, 50 mm - Rim strip: Bontrager TLR
- Max tyre size: Frame: 29x2.5"
Drivetrain:- Shifter: Shimano Deore M6100, 12-speed
- Rear derailleur: Shimano Deore M6100, long cage
- Crank: Size: S, M, M/L, L
Shimano MT512, 30T ring, 55 mm chain line, 170 mm length
Size: XL, XXL
Shimano MT512, 30T ring, 55 mm chain line, 175 mm length - Bottom bracket: Size: S, M, M/L, L, XL, XXL
Shimano BB-MT501 BSA
Size: S, M, M/L, L, XL, XXL
Shimano SM-BB52, 73 mm, threaded external bearing - Cassette: Size: S, M, M/L, L, XL, XXL
Shimano Deore M6100, 10-51, 12-speed
Size: S, M, M/L, L, XL, XXL
SunRace CSMZ800 11-51, 12 speed - Chain: Size: S, M, M/L, L, XL, XXL
Shimano Deore M6100, 12-speed
Size: S, M, M/L, L, XL, XXL
Shimano Deore M6100 - Max. chainring size: Max: 36T (oval – 34T) Min: 28T
Components:- Saddle: Bontrager Arvada, steel rails, 138 mm width
- Seatpost: Size: S
TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
Size: M, M/L
TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
Size: L, XL, XXL
TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length - Handlebar: Size: S, M, M/L, L, XL, XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Size: S, M, M/L, L, XL, XXL
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width - Grips: Bontrager XR Trail Comp, nylon lock-on
- Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
- Head set: Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom
- Brake: Shimano MT200 hydraulic disc
- Brake rotor: Size: S, M, M/L, L, XL, XXL
Shimano RT26, 6-bolt,180 mm
Size: S, M, M/L, L, XL, XXL
Shimano RT26, 6-bolt,160 mm - Brake Set: Shimano MT200 hydraulic disc
Weight:- Weight: M - 15.29 kg / 33.71 lb
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
